HBase

环境部署¶

官方文档

https://hbase.apache.org/x.y/book.html

下载地址

https://archive.apache.org/dist/hbase/x.y.z/

安装目录

/opt/bigdata/hbase/

配置文件

https://hbase.apache.org/x.y/book.html#_configuration_files

部署规划

node0：Standalone

node0：Pseudo-Distributed；

node1 node2 node3 配置为hbase集群。

Standalone¶

Standalone

https://hbase.apache.org/x.y/book.html#quickstart

准备¶

上传¶

[zhangsan@node0 bigdata]$ cd /opt/bigdata/
[zhangsan@node0 bigdata]$ mkdir hbase

使用FTP工具上传压缩包hbase-x.y.z-bin.tar.gz到/opt/bigdata/hbase 目录或者直接wget在线下载。

解压¶

[zhangsan@node0 hbase]$ tar -zxf hbase-x.y.z-bin.tar.gz

# 做一个软连接（可选）
[zhangsan@node0 hbase]$ ln -s hbase-x.y.z default
[zhangsan@node0 hbase]$ ll
lrwxrwxrwx.  1 zhangsan zhangsan        12 Mar  3 18:40 default -> hbase-x.y.z
drwxrwxr-x.  7 zhangsan zhangsan       160 Mar  3 18:40 hbase-x.y.z
-rw-rw-r--.  1 zhangsan zhangsan 118343766 Mar  3 18:39 hbase-x.y.z-bin.tar.gz

配置¶

`hbase-env.sh`¶

export JAVA_HOME=/usr/java/default
# 使用HBase自带的ZooKeeper
export HBASE_MANAGES_ZK=true

`hbase-site.xml`¶

<configuration>
  <property>
    <name>hbase.rootdir</name>
    <value>file:///opt/bigdata/hbase/default/data</value>
  </property>
  <property>
    <name>hbase.zookeeper.property.dataDir</name>
    <value>/opt/bigdata/hbase/default/zookeeper</value>
  </property>
</configuration>

`~/.bashrc`¶

export HADOOP_HOME=/opt/bigdata/hadoop/default
export HBASE_HOME=/opt/bigdata/hbase/default
export PATH=$HADOOP_HOME/bin:$HADOOP_HOME/sbin:$HBASE_HOME/bin:$PATH

记得source一下，让环境变量生效。

[zhangsan@node0 ~]$ source ~/.bashrc

使用¶

启动¶

首先需要启动Hadoop

[zhangsan@node0 ~]$ start-hbase.sh

# 在Standalone模式下，只有一个HMaster进程，里面包括了HMaster,HRegionServer,Zookeeper
(base) [zhangsan@node0 default]$ jps
58278 Jps
57002 HMaster

HelloWorld¶

[zhangsan@node0 default]$ hbase shell
-- 创建表'student' 和 一个列簇 'info'
hbase(main):001:0> create 'student','info'
0 row(s) in 2.1590 seconds

=> Hbase::Table - student

-- 插入一条数据，行键RowKey=1001, column 为name, value为'zhangsan'
hbase(main):002:0> put 'student','1001','info:name','zhangsan'
0 row(s) in 0.2520 seconds

-- 遍历表
hbase(main):003:0> scan 'student'
ROW                                         COLUMN+CELL
 1001                                       column=info:name, timestamp=1646305250836, value=zhangsan
1 row(s) in 0.0330 seconds

-- 退出
hbase(main):004:0> exit

停止¶

[zhangsan@node0 default]$ stop-hbase.sh
stopping hbase......................

伪分布式¶

伪分布式

https://hbase.apache.org/x.y/book.html#quickstart_pseudo

配置¶

hbase-site.xml¶

<configuration>
    <property>
        <name>hbase.cluster.distributed</name>
        <value>true</value>
    </property>

    <property>
        <name>hbase.rootdir</name>
        <value>hdfs://node0:8020/hbase</value>
    </property>

    <property>
        <name>hbase.zookeeper.property.dataDir</name>
        <value>/opt/bigdata/hbase/default/zookeeper</value>
    </property>
</configuration>

使用¶

1. 启动HDFS¶

# 启动HDFS
[zhangsan@node0 default]$ start-dfs.sh
# 查看后台进程
[zhangsan@node0 default]$ jps
58944 DataNode
59136 SecondaryNameNode
58783 NameNode

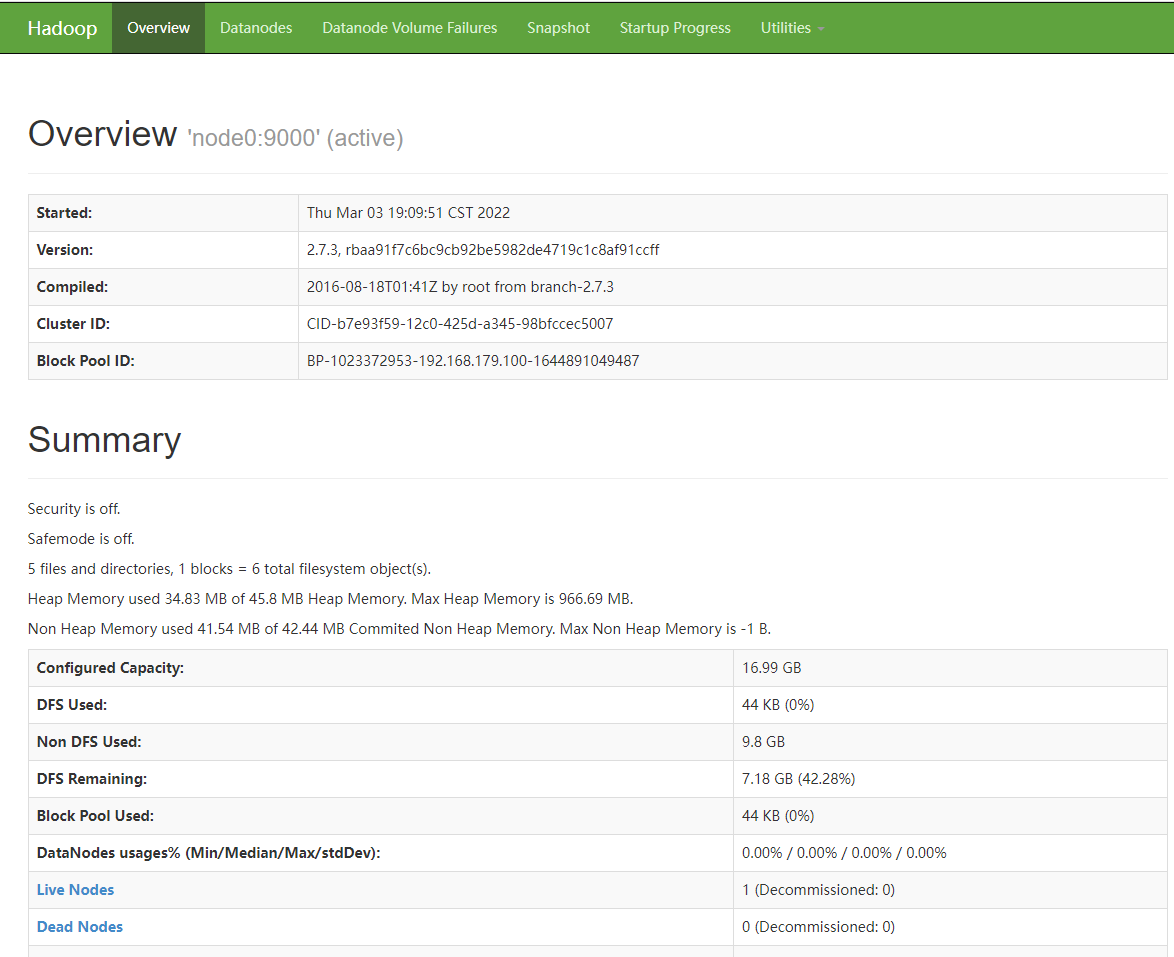

HDFS Web UI¶

2. 启动HBase¶

# 启动HBase
(base) [zhangsan@node0 default]$ start-hbase.sh
The authenticity of host 'localhost (::1)' can't be established.
ECDSA key fingerprint is SHA256:WidPRw9uecnRTrTxBUX35ET02GKdgnoup3FOVmGNBo0.
ECDSA key fingerprint is MD5:c2:b6:e1:6d:e9:0e:b1:40:c2:a1:0e:b2:a8:ca:73:34.
Are you sure you want to continue connecting (yes/no)? ·`yes`
localhost: Warning: Permanently added 'localhost' (ECDSA) to the list of known hosts.
localhost: running zookeeper, logging to /opt/bigdata/hbase/default/logs/hbase-zhangsan-zookeeper-node0.out
running master, logging to /opt/bigdata/hbase/default/logs/hbase-zhangsan-master-node0.out
: running regionserver, logging to /opt/bigdata/hbase/default/logs/hbase-zhangsan-regionserver-node0.out

# 查看后台进程
(base) [zhangsan@node0 default]$ jps
58944 DataNode
59136 SecondaryNameNode
60945 `HRegionServer`
60770 `HQuorumPeer`
60861 `HMaster
58783 NameNode

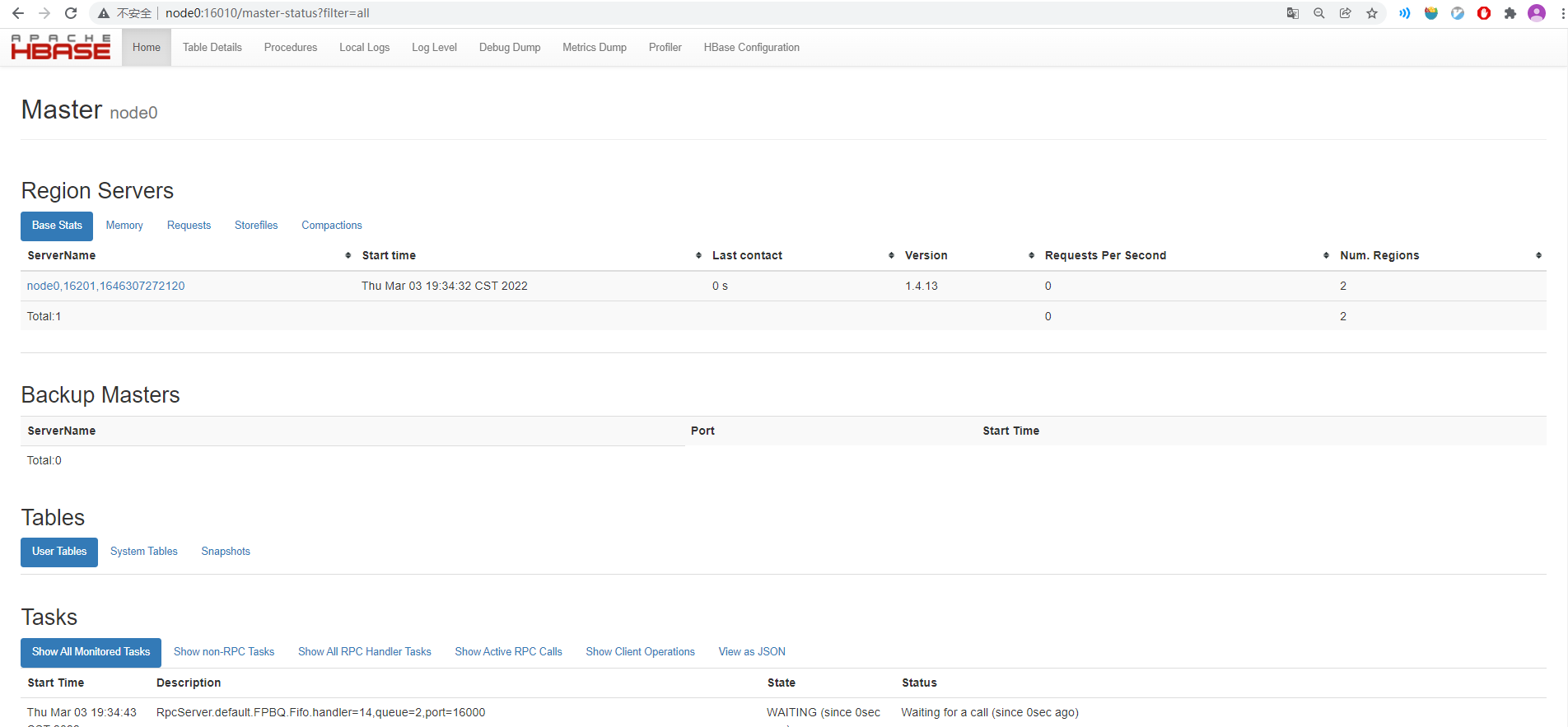

Web UI - HMaster¶

http://node0:16010

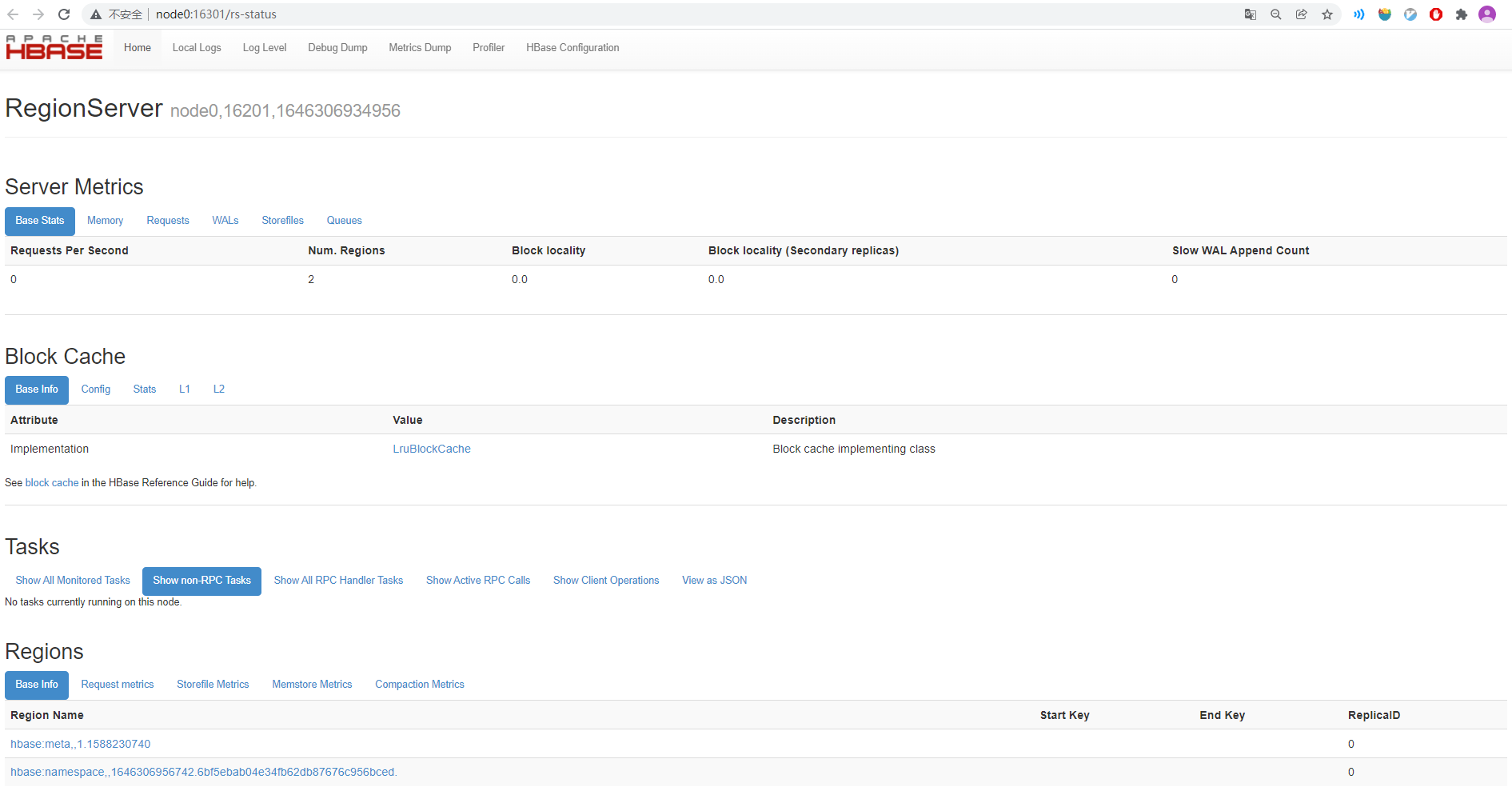

Web UI - HRegionServer¶

http://node0:16301

4. 停止¶

[zhangsan@node0 default]$ stop-hbase.sh
stopping hbase.....................
localhost: running zookeeper, logging to /opt/bigdata/hbase/default/logs/hbase-zhangsan-zookeeper-node0.out
localhost: stopping zookeeper.

[zhangsan@node0 default]$ stop-dfs.sh
Stopping namenodes on [node0]
node0: stopping namenode
node0: stopping datanode
Stopping secondary namenodes [0.0.0.0]
0.0.0.0: stopping secondarynamenode

全分布式¶

ZooKeeper副本模式

参考Zookeeper实验手册

全分布式模式

https://hbase.apache.org/x.y/book.html#quickstart_fully_distributed

集群规划¶

	ZooKeeper	HDFS	YARN	HBase
`node1`	`yes`	`NameNode`,`DataNode`,`SecondaryNameNode`	`ResourceManager`, `NodeManager`	`HMaster`, `RegionServer`
`node2`	`yes`	`DataNode`	`NodeManager`	`HMaster(backup)`,`RegionServer`
`node3`	`yes`	`DataNode`	`NodeManager`	`RegionServer`

配置¶

在node1节点配置，最后将其分发到其他节点。

环境变量¶

~/.bashrc

export ZOOKEEPER_HOME=/opt/bigdata/zookeeper/default
export HADOOP_HOME=/opt/bigdata/hadoop/default
export HBASE_HOME=/opt/bigdata/hbase/default
export PATH=$ZOOKEEPER_HOME/bin:$HADOOP_HOME/bin:$HADOOP_HOME/sbin:$HBASE_HOME/bin:$PATH

记得在Master节点source一下，让环境变量生效。

[zhangsan@node0 ~]$ source .bashrc

hbase-env.sh¶

export JAVA_HOME=/usr/java/default
export HBASE_MANAGES_ZK=false

hbase-site.xml¶

<configuration>
    <property>
        <name>hbase.cluster.distributed</name>
        <value>true</value>
    </property>

    <property>
        <name>hbase.rootdir</name>
        <value>hdfs://node1:8020/hbase</value>
    </property>

    <property>
      <name>hbase.zookeeper.quorum</name>
      <value>node1,node2,node3</value>
    </property>

</configuration>

backup-masters¶

$HBASE_HOME/conf/目录下无此文件，需要手动创建。

node2

regionservers¶

node1
node2
node3

修改完上述配置文件后，将其同步到其它节点。

使用¶

启动ZooKeeper¶

在三个节点中分别启动ZooKeeper集群：

[zhangsan@node1 ~]$ zkServer.sh start
[zhangsan@node2 ~]$ zkServer.sh start
[zhangsan@node3 ~]$ zkServer.sh start

可以查看到其中一台节点被选举为leader

[zhangsan@node2 default]$ zkServer.sh status
ZooKeeper JMX enabled by default
Using config: /opt/bigdata/zookeeper/default/bin/../conf/zoo.cfg
Mode: leader

启动HDFS¶

在node1节点启动Hadoop集群：

[zhangsan@node1 hbase-x.y.z]$ start-all.sh

Wnode1¶

[zhangsan@node1 hbase-x.y.z]$ jps
18067 NodeManager
18099 Jps
97669 QuorumPeerMain
17476 DataNode
17928 ResourceManager
17707 SecondaryNameNode
17341 NameNode

node2¶

[zhangsan@node2 default]$ jps
78832 Jps
78659 NodeManager
78443 DataNode
28351 QuorumPeerMain

node3¶

[zhangsan@node3 default]$ jps
78066 DataNode
78466 Jps
78281 NodeManager
27977 QuorumPeerMain

启动HBase¶

在node1启动HBase 集群。

[zhangsan@node1 conf]$ start-hbase.sh

查看启动情况

node1¶

[zhangsan@node1 hbase-x.y.z]$ jps
18067 NodeManager
97669 QuorumPeerMain
17476 DataNode
17928 ResourceManager
19129 HRegionServer
19241 Jps
17707 SecondaryNameNode
17341 NameNode
18973 HMaster

node2¶

[zhangsan@node2 default]$ jps
78659 NodeManager
79298 HRegionServer
79442 HMaster
78443 DataNode
79644 Jps
28351 QuorumPeerMain

node3¶

[zhangsan@node3 default]$ jps
78066 DataNode
78281 NodeManager
78921 HRegionServer
27977 QuorumPeerMain
79119 Jps

Web UI¶

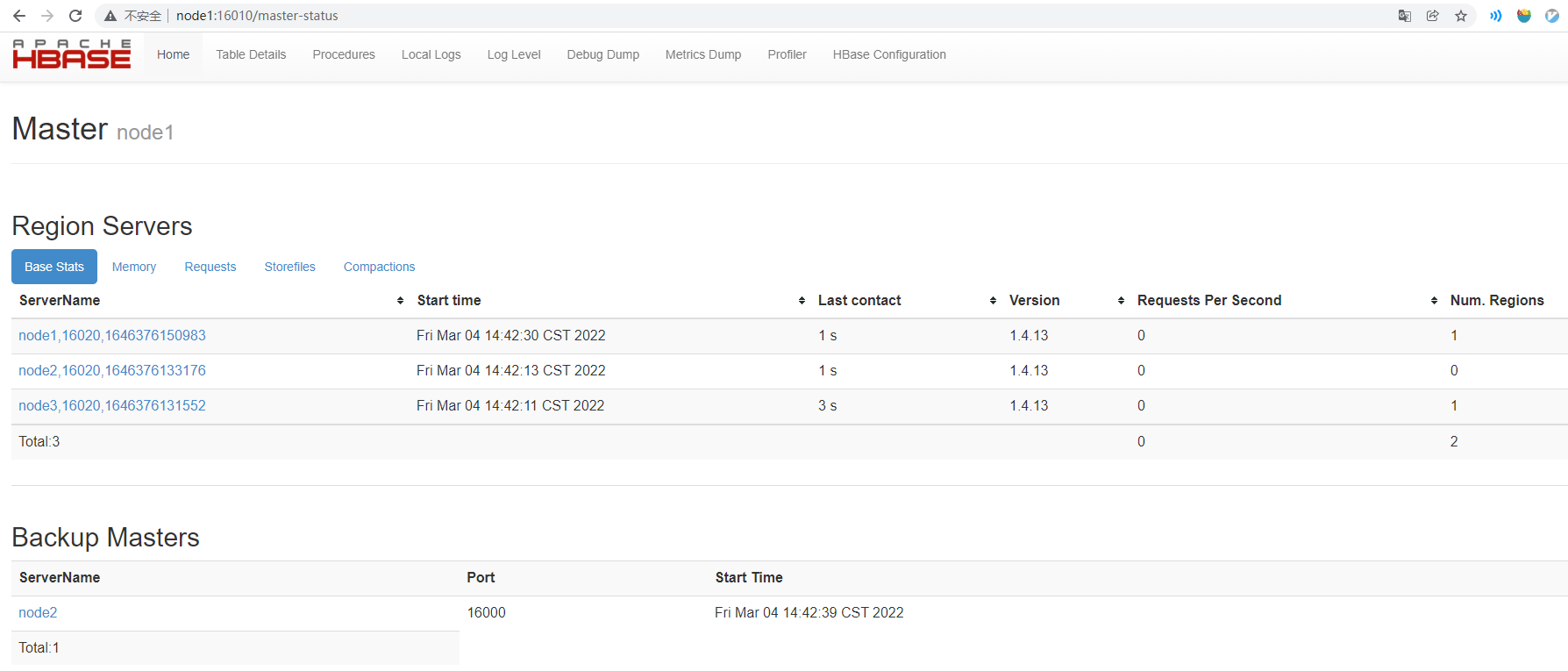

http://node1:16010/master-status (Master)¶

http://node2:16010/master-status(Backup Master)¶

http://node1:16030/rs-status (RegionServer)¶

http://node2:16030/rs-status (RegionServer)¶

http://node3:16030/rs-status (RegionServer)¶

停止HBase¶

[zhangsan@node1 ~]$ stop-hbase.sh

停止HDFS¶

[zhangsan@node1 ~]$ stop-all.sh

停止ZooKeeper¶

分别停止各节点上的ZooKeeper

[zhangsan@node1 ~]$ zkServer.sh stop
[zhangsan@node2 ~]$ zkServer.sh stop
[zhangsan@node3 ~]$ zkServer.sh stop
